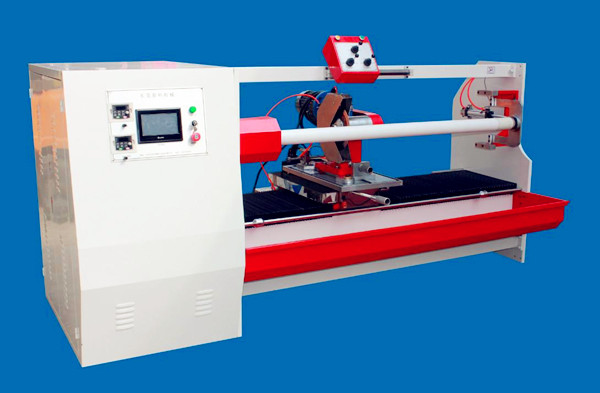

Auto single Shaft Tape Cutting Machine
- Brand: ???LIDA
- Type: ???LD-1300S
Auto single Shaft Tape Cutting Machine
For cutting BOPP, PVC, PE, EVA, 3M, Mylar, masking, foam, cloth, double sticky, Kraft, aluminum duct tape etc from log roll into small sizes tapes.
Feature of this Auto single Shaft Tape Cutting Machine:
20 modes for size setting each time & auto changing when cutting
1)PLC system with LCD touch screen control panel
2)Auto liquid silicon water spray cooling system
3)AC motors for cutting blade and cutting shaft with inverters speed changing
4)Servo motor for cutting,more accurate position
5)Sliding system,high precision liner sliding track and ball screw
6)Auto cutting angel adjustment ±8° can well protect the cutting blade as well as guarantee the cutting edge flatness
7)Single shaft, single blade
Technical parameters of this Auto single Shaft Tape Cutting Machine:
|
Effective working width |
1300mm |
|
Max cutting diameter |
400mm |
|
Min slitting width |
1mm |
|
Paper core diameter |
25.4-76.2mm |
|
Circular blade diameter |
Ф250 300 350 450 |
|
Cutting accuracy |
+/-0.1mm |
|
Size |
3200*1200*1650mm |
